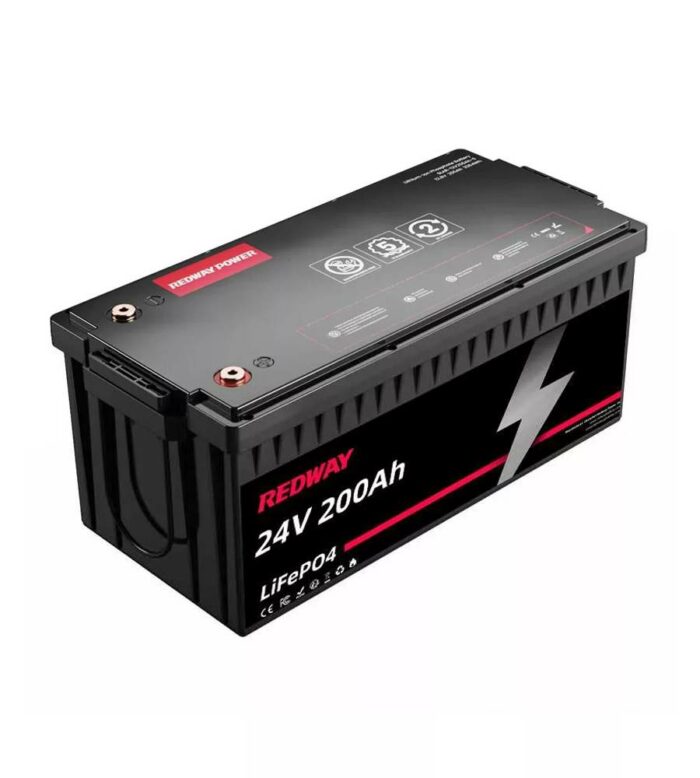

24V 200Ah LiFePO4 Battery

Introducing the 24V 200Ah LiFePO4 Battery, a high-performance energy storage solution manufactured by a leading OEM in China. This advanced lithium iron phosphate (LiFePO4) battery is specifically designed for high-capacity applications, making it ideal for OEM, ODM, and wholesale buyers. It is perfect for solar energy systems, RVs, marine use, and off-grid power solutions. With its robust performance and cutting-edge technology, this battery ensures reliable energy delivery wherever needed.

Key Features

• High Capacity: This battery delivers a nominal voltage of 25.6V and a capacity of 200Ah, providing an impressive energy output of 5120Wh suitable for demanding applications.
• Extended Cycle Life: Designed to withstand over 6000 cycles at 80% Depth of Discharge (DoD), it guarantees long-lasting performance and exceptional durability, significantly reducing replacement costs.
• Smart BMS Protection: The battery is equipped with an advanced Battery Management System (BMS) that safeguards against overcharging, overheating, and short circuits, enhancing safety throughout its lifecycle.
• Wide Operating Temperature Range: It functions efficiently in temperatures ranging from -20°C to 60°C for discharge and 0°C to 55°C for charging, making it adaptable to diverse environments.
• Customizable Options: This battery is available for OEM/ODM customization to meet specific requirements, including features like Bluetooth connectivity and LCD displays.

Product Description

The 24V 200Ah LiFePO4 Battery is engineered to meet the energy demands of various applications such as solar energy storage, electric vehicles, RVs, and marine systems. With a nominal voltage of 25.6V, it provides reliable energy storage suitable for a wide range of uses.

A 24V 200Ah LiFePO4 battery offers high capacity and long life by combining advanced lithium iron phosphate chemistry with an intelligent Battery Management System (BMS). Delivering approximately 5.12kWh of energy, it supports over 6,000 deep charge cycles, fast charging, and robust safety features, making it ideal for solar energy storage, RVs, marine, and industrial applications.

What is a 24V 200Ah LiFePO4 Battery and How Does It Work?

A 24V 200Ah LiFePO4 battery is a rechargeable lithium iron phosphate battery with a nominal voltage of 25.6V and a capacity of 200 amp-hours. It stores energy by moving lithium ions between electrodes during charge and discharge cycles, providing stable voltage and high current output suitable for deep cycle applications.

How Does LiFePO4 Chemistry Ensure Long Life and High Capacity?

LiFePO4 chemistry offers excellent thermal stability and chemical safety, reducing risks of overheating and fire. It supports thousands of deep discharge cycles with minimal capacity loss, ensuring consistent power output and a long lifespan even under demanding conditions.

What Are the Key Specifications of a 24V 200Ah LiFePO4 Battery?

• Nominal Voltage: 25.6V

• Capacity: 200Ah

• Energy: Approximately 5.12 kWh

• Max Continuous Discharge Current: 100-200A

• Peak Discharge Current: 200-300A (short bursts)

• Cycle Life: Over 6,000 cycles at 80% Depth of Discharge (DoD)

• Weight: Approximately 45-60 kg

• Dimensions: Approx. 650 x 380 x 200 mm

• Charge Voltage: 28.8V – 29.2V

• Discharge Cut-off Voltage: 20V

• Self-discharge Rate: <1% per month

• Operating Temperature: Charge 0°C to 60°C; Discharge -20°C to 60°C

• Protection Rating: IP54 to IP65 (model dependent)

• Integrated BMS with protections for overcharge, over-discharge, overcurrent, short circuit, temperature, and cell balancing

How Does the Battery Management System (BMS) Protect and Optimize the Battery?

The BMS monitors voltage, current, temperature, and state of charge to prevent overcharging, deep discharge, overheating, and short circuits. It balances cells to maximize capacity and cycle life, ensuring safe and efficient operation.

What Are the Advantages of Using a 24V 200Ah LiFePO4 Battery Over Lead-Acid Batteries?

• Up to 10 times longer cycle life

• Higher usable capacity (up to 95% DoD)

• Lighter weight (approximately 50-60% lighter)

• Faster charging times

• Minimal maintenance requirements

• Enhanced safety and environmental friendliness

How Should You Charge and Maintain a 24V 200Ah LiFePO4 Battery?

Charging should follow a constant current/constant voltage (CC/CV) profile with a maximum charge voltage near 29.2V. Maintenance is minimal, including periodic inspection of terminals and connections, and operating within recommended temperature ranges.

How Does Temperature Affect the Performance and Lifespan of a 24V 200Ah LiFePO4 Battery?

Performance declines at temperature extremes. Low temperatures increase internal resistance and reduce capacity, while high temperatures accelerate chemical degradation. Optimal performance and longevity occur between 0°C and 45°C.

What Applications Are Best Suited for a 24V 200Ah LiFePO4 Battery?

Ideal applications include:

• Solar energy storage and off-grid power systems

• Recreational vehicles (RVs) and marine power

• Industrial backup power and UPS

• Electric vehicles and golf carts

• Telecommunications and remote monitoring

What Customization Options Are Available for 24V 200Ah LiFePO4 Batteries?

OEM-Lithium-Batteries offers customization including voltage and capacity configurations, communication protocols (CAN, RS485, Bluetooth), self-heating modules, GPS tracking, LCD displays, and tailored enclosure designs.

Chart: 24V 200Ah LiFePO4 vs Lead-Acid Battery Comparison

Chart: Key Specifications of 24V 200Ah LiFePO4 Battery
